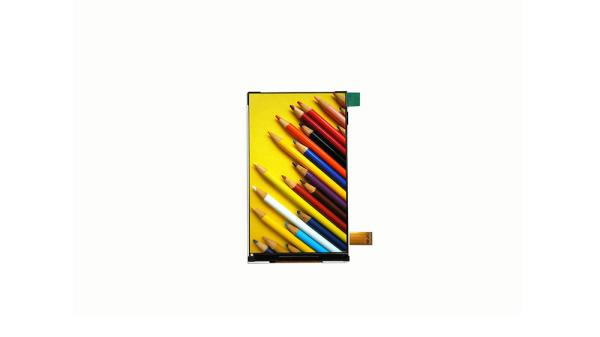

4.3 inch vertical Industrial TFT LCD Display RXL043057-A with 500 nits high brightness for GDP monitor
LCD Specification:
| LCD Size | 4.3 inch |
| Resolution | 480x800 |
| LCM OD | 61.20x103x1.8(mm) |
| LCM AA | 56.16×93.60(mm) |
| Viewing Angle | FULL |
| Driver IC | ILI9806E |
| Interface | MIPI |
| FPC | 25 PIN |
| Brightness | 500 nits |
LCD Description:
TFT LCD (Thin Film Transistor Liquid Crystal Display) has a sandwich-like structure with liquid crystal filled between two glass plates.
TFT Glass has as many TFTs as the number of pixels displayed, while a Color Filter Glass has a color filter that generates color. Liquid crystals move according to the difference in voltage between the Color Filter Glass and the TFT glass. The amount of light supplied by Back Light is determined by the amount of movement of the liquid crystals in such a way as to generate a color.

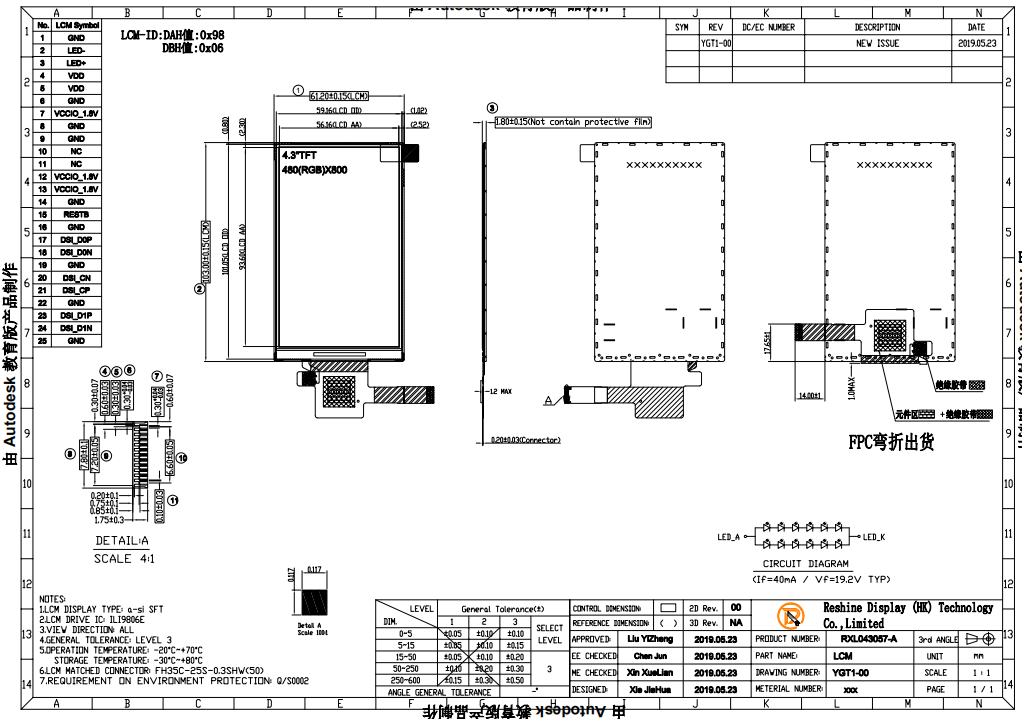

LCD Drawing:
Applications for Industrial TFT LCD Display:
- Factories
- outdoor kiosks
- digital signage
- military
- naval applications
- food processing
- medical equipment
- office
- home settings
Features:
1)Quick and More Stable Response Time
The response time of an IPS LCD is much more consistent, stable, and quick than the TFT displays. However, you will not be able to gauge the difference apparently by watching TFT and IPS displays separately. But, once you watch the screen side-by-side, the difference will become quite clear to you.
2)Viewing Angle is Much Wider
As IPS displays are an improved version of TFT displays the viewing angle of IPS LCDs is very much wide. It is a plus point in favor of IPS LCDs when you compare TFT vs IPS. With a TFT screen, you cannot watch an image from various angles without encountering halo effects, blurriness, or grayscale that will cause problems for your viewing. It is one of the major and remarkable differences between IPS and TFT displays.
3)Greater Transmittance of Frequencies
Now, when you want to achieve wide-angle viewing with your display screen, you need to make sure it has a faster level of frequency transmittance. It is where IPS displays overtake TFT displays easily in the comparison because the IPS displays have a much faster and speedier transmittance of frequencies than the TFT displays.
Now the transmittance difference between TFT displays and IPS displays would be around 1ms vs. 25ms.
LCD Display types:
- High brightness TFT LCD Display
- IPS TFT LCD Display
- MIPI interface LCD Display
- HDMI TFT LCD Display
- FHD LCD Display
- Customized TFT LCD Display
Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for displays in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality tests or other business purposes, but we kindly ask you to pay for samples and the freight.
FAQ:
1. What is your delivery method?
DHL, UPS, FEDEX, TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
2-4 weeks for mass production
3. Payment methods?
T/T or Paypal.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally, the warranty period is one year. It depends on different products.
5. What is the Product MOQ?
There is no MOQ for our standard products. (From 2 inch to 32 inches capacitive/resistive touch panel)
About Reshine Display:
Reshine manufactures custom LCD display solutions for a variety of end-user applications: Medical devices, industrial equipment, household appliances, consumer electronics, and many others. Our LCD factories are equipped to build custom LCDs for optimal performance in even the most challenging environments. Whether your product will be used in the great outdoors or a hospital operating room, we can build the right custom LCD solution for your needs.
